COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal Special O-ring
| محل منبع | چوگان |
|---|---|
| نام تجاری | DZK |
| گواهی | ROHS |
| شماره مدل | APA |
| مقدار حداقل تعداد سفارش | 100 قطعه |
| قیمت | negotiate |
| جزئیات بسته بندی | 100 قطعه/کیف |
| زمان تحویل | 7-10 روز |
| شرایط پرداخت | L/C ، T/T |
| قابلیت ارائه | 1000000 قطعه در ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نام محصول | COP/APA | مادی | FKM (Fluoroelastomer) |
|---|---|---|---|
| امتیاز فشار | 0-1.5 Mpa | دامنه دما | -20 درجه سانتیگراد تا +200 درجه سانتیگراد |
| رنگ | قهوه ای (استاندارد) | واسطه کار | روغن معدنی ، روغن مصنوعی ، آب |
| خاصیت مواد | مقاوم در برابر روغن ، مقاوم در برابر سایش و ضد پیری | ساختار | شیار دو طرفه ، دو طرفه |
توضیحات محصول
COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal | High-Performance FKM O-Ring for Extreme Conditions
Product Overview
The COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal is a premium sealing solution engineered for the most demanding industrial applications. Manufactured from high-grade Fluoroelastomer (FKM), this specialized O-ring delivers exceptional performance in extreme temperatures, aggressive chemicals, and high-pressure environments, ensuring reliable sealing in both stroke directions of double-acting cylinders.
Key Features & Benefits
1.Material Performance: Strong material properties, with excellent resistance to high and low temperatures (-20°C to 200°C), strong acids, strong alkalis, and various oils, as well as outstanding chemical stability, making it less prone to swelling and cracking.
2. Good Sealing Effect: Well-suited for the reciprocating motion of double-acting cylinders, it conforms closely to the sealing surface, minimizes leakage under high pressure, has low compression deformation, and ensures long-term reliable sealing.
3. Outstanding Durability: High wear resistance and tear resistance, with good ozone aging resistance. Its lifespan is 3-5 times that of ordinary rubber rings, reducing replacement frequency.
4. High Adaptability and Cost-Effectiveness: Precisely matches the operating conditions of APA double-acting cylinders, reduces equipment maintenance costs, and can be used in multiple high-end scenarios such as chemical industry, machine tools, and automobiles.
Technical Specifications
| Parameter | Standard Specification |
|---|---|
| Material | FKM (Fluoroelastomer) |
| Temperature Range | -20°C to +200°C |
| Pressure Rating | 0-1.5 MPa |
| Color | Brown (Standard) |
Applications
-
Hydraulic Systems - High-pressure cylinders in manufacturing equipment
-
Chemical Processing - Pumps and valves handling corrosive media
-
Automotive Industry - Engine and transmission systems
-
Oil & Gas Equipment - Drilling and refining machinery
-
Aerospace Applications - High-temperature hydraulic systems
Material Advantages of FKM
Superior Chemical Resistance
-
Excellent resistance to oils, fuels, aromatics, and most chemicals
-
Minimal swelling in hydrocarbon-based fluids
-
Maintains performance in aggressive industrial environments
Thermal Stability
-
Continuous operation at elevated temperatures
-
Rapid thermal cycling capability
-
Retains elasticity across full temperature range
Mechanical Properties
-
Excellent compression set resistance
-
Good tensile and tear strength
-
Low gas permeability

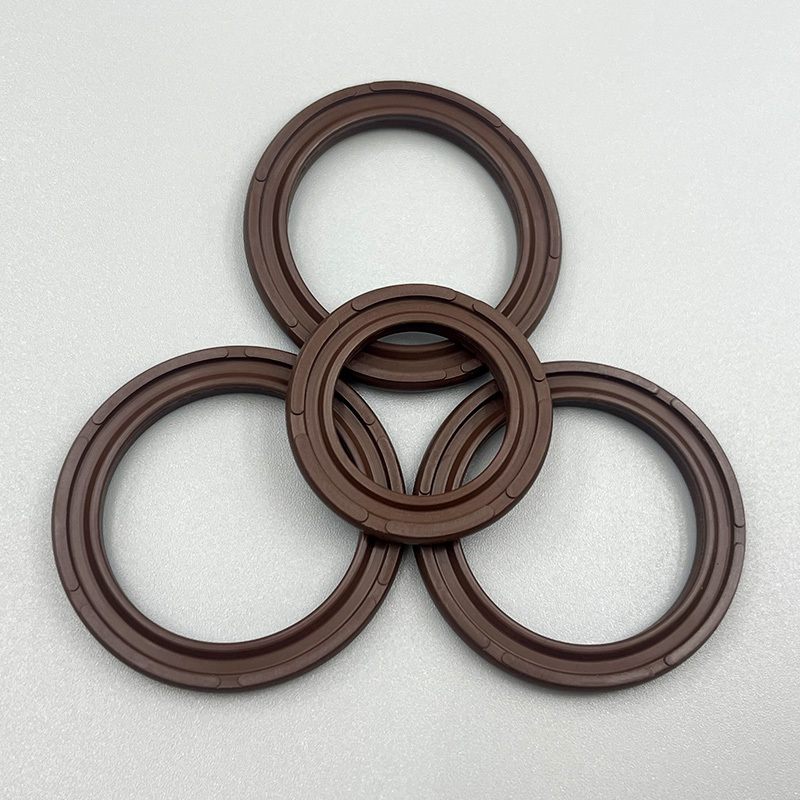

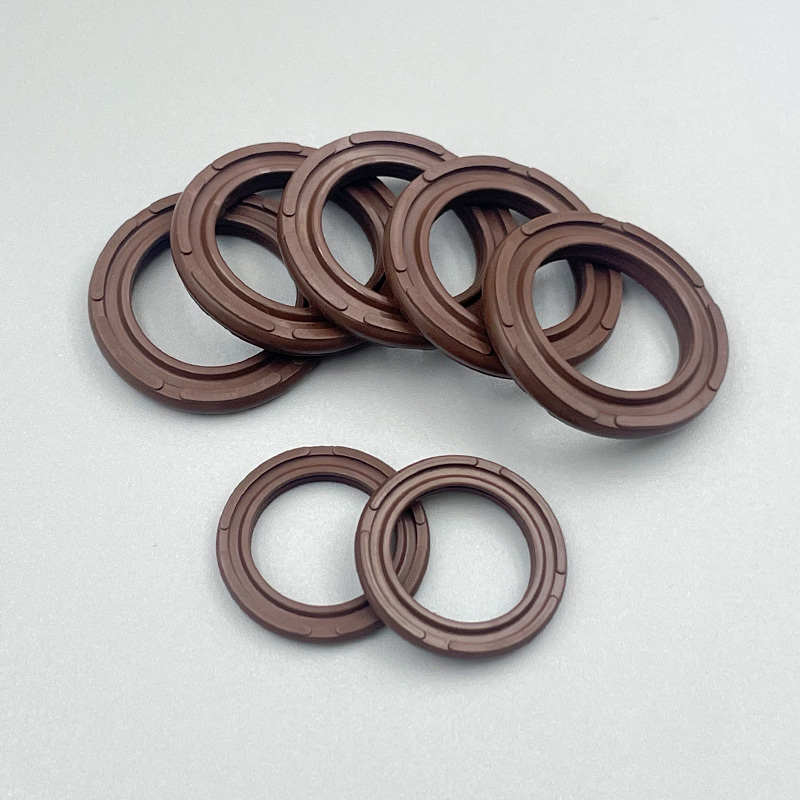

Product real shot
