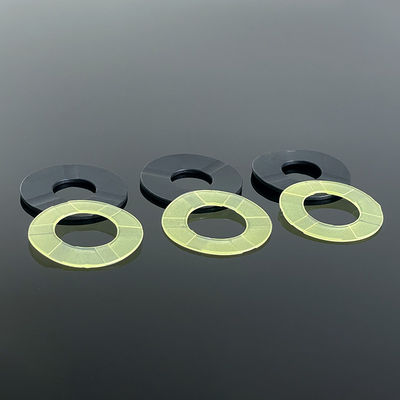

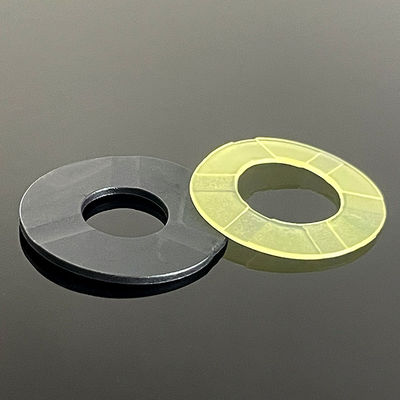

NBR/TPU Step-Free Buffer Gasket for Mini Cylinders | Wear-Resistant, Step-Free Cushioning for Mini/Dual-Axis Cylinders
| محل منبع | چوگان |
|---|---|
| نام تجاری | DZK |
| گواهی | ROHS |
| شماره مدل | واشر بافر NBR/TPU برای مینی سیلندرها |
| مقدار حداقل تعداد سفارش | 100 قطعه |
| قیمت | negotiate |
| جزئیات بسته بندی | 100 قطعه/کیف |
| زمان تحویل | 7-10 روز |
| شرایط پرداخت | L/C ، T/T |
| قابلیت ارائه | 1000000 قطعه در ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نام | واشر بافر استیل | ماده اصلی | سختی بالا NBR/TPU |
|---|---|---|---|
| فشار | 0-1.6 مگاپاسکال | رنگ | سیاه، زرد |
| شکل | دایره | سیلندر قابل اجرا | مینی سیلندر/سیلندر دو محور |
| عمل | مقاوم در برابر سایش و مقاوم در برابر روغن 、 اسید و مقاوم در برابر قلیایی 、 مقاوم در برابر گرما 、 مقا | تابع | جذب ضربه و محافظت از سطح ، با سازگاری قوی در شکاف های باریک/فضاهای کم ، نصب و برش انعطاف پذیر و تمیز |
توضیحات محصول
NBR/TPU Step-Free Buffer Gasket for Mini Cylinders | Eliminate End-Stroke Impact in Compact Spaces
Solve Miniaturization Challenges: Achieve smooth, quiet, and reliable cushioning in miniature and dual-axis cylinders where traditional stepped buffers cannot fit.
Product Overview: Precision Buffering, Suitable for Compact Design
Our high-hardness NBR/TPU material stepless buffer gasket is a cleverly conceived, simple yet crucial component, specifically designed for micro and dual-axis cylinders with extremely limited internal space. Unlike bulky traditional stepped buffers, this flat, high-performance gasket can directly provide effective deceleration and impact absorption at the end cap, ensuring smooth operation and significantly extending the service life of compact pneumatic actuators.
Ideal Applications: Mini cylinders, dual-axis cylinders, guided cylinders, and other compact pneumatic actuators where internal space is precious.
Key Features & Unmatched Benefits
- True Step-Free Design: Ultra-thin, flat profile installs easily in cylinders with no room for conventional stepped buffers.
- Exceptional Wear Resistance: Made from high-grade NBR (Standard) or TPU (High-Performance), offering outstanding abrasion resistance for millions of cycles.
- High Hardness for Effective Damping: Specially formulated compounds provide the optimal hardness to absorb impact energy without compromising sealing.
- Reduced Noise & Vibration: Effectively dampens the metallic "clang" at end-of-stroke, creating quieter machinery.
- Easy Installation: A simple drop-in component that requires no modification to your cylinder.
Technical Specifications
| Parameter | Standard (NBR) | High-Performance (TPU) |
|---|---|---|
| Primary Material | Nitrile Butadiene Rubber (NBR) | Thermoplastic Polyurethane (TPU) |
| Hardness (Shore A) | 80° ±5 | 90° ±5 |
| Temperature Range | -30°C to +100°C | -40°C to +110°C |
Material Selection Guide
- Choose NBR (Standard): For most general industrial applications. Excellent balance of cost and performance, with good resistance to lubricants and wear.
- Choose TPU (Premium): For high-cycle applications, higher speeds, or where maximum service life is critical. Superior abrasion resistance and mechanical strength.
Applications: Where It Makes a Difference
This buffer gasket is essential in precision automation equipment using compact pneumatic actuators:
- Electronics Assembly: PCB handling, component insertion, mini pick-and-place units.
- Medical & Laboratory Automation: Diagnostic equipment, sample handling, precision fluid dispensing.
- Robotics: Small robotic grippers and end-effectors.
- Packaging Machinery: Small product sorting and positioning.
- Precision Instrumentation: Optical lens adjustment, sensor actuation.
